Tuesday 30 May 2017

Using QinQ to Build Flexible Lab Topologies

If you're sick and tired of re-cabling your lab every time you want to try out a new topology then you should probably consider using a QinQ tunnelling switch instead. With a QinQ switch at the heart of your lab network it's possible to stand up completely arbitrary topologies with very little effort, no re-cabling and even set it up from a remote location.

In this post I'll walk through setting up a Cisco 3560 to act as a central QinQ switch and how to set up a few example topologies. This can also be done on older / lower spec switches using the same concepts - 802.1Q tunnelling is supported in most of the gear you'll find on eBay.

Theory


Service providers like to aggregate as many customers onto a single link as possible - otherwise they can't be price competitive. Customers want circuits that allow them to not only trunk VLANs but to use and and all of the 4095 possible VLAN IDs without having to check with their service provider first.

One (adequate) way to do this is to extend the notion of VLANs. We all know VLANs separate a LAN into multiple logical partitions using a VLAN identifier tag - QinQ takes that to the next level by stacking 2 VLAN tags on top of each other. If the service provider assigns a VLAN to each customer then they can be used to segregate customers from one another as follows:



Note here that both customers use VLAN 10, however they each get their own VLAN 10 independent of any other customer's. Customers can use any VLAN numbers they like, irrespective of what other customers or the provider has chosen to use.

In service provider parlance, the first (or outer) VLAN tag is the Service Provider VLAN (or S-VLAN). A customer's VLAN which get tunnelled through is called Customer VLAN (or C-VLAN). There is a hierarchy in that one S-VLAN may have multiple C-VLANs, while a C-VLAN can only have one parent S-VLAN. VLAN IDs can be re-used across customers, however customer A's VLAN 10 is different to customer B's VLAN 10.

For our lab setup we will do exactly the same thing, but locally on a single switch. 802.1Q tunnelling not only allows us to connect trunks to each other over a VLAN but also, optionally, control protocols such as LACP, spanning tree, CDP and so on can also be tunnelled through, giving the impression that the end devices are actually attached to each other rather than through a switch.

Physical Topology


Here's a simple lab setup - 2 PCs, 2 routers, 2 firewalls and 2 switches (plus our QinQ switch):



Basically, we just need to plug all the devices into the QinQ switch. Use as many ports as you have available in the QinQ switch and be sure to label them up with descriptions! Sensibly, though, you will really want a minimum of 4 ports for a switch and at least 3 for a firewall. You can get most of the functionality you want with using sub-interfaces on a router so in a pinch you can usually get away with having single links if need be. It's all about giving yourself the maximum flexibility.

Initial Setup


Before we even begin with the configuration proper, we have to work around a dopey default behaviour in Cisco switches. Straight out of the box most Catalyst switches have a layer 2 switching MTU of 1500 for both Fast Ethernet and Gigabit Ethernet ports. This needs to be overridden to allow full size frames to be passed through with a VLAN tag still attached.

Adjust the maximum MTU for Fast Ethernet ports as follows:

Lab-QinQ(config)#system mtu 1998
Changes to the system MTU will not take effect until the next reload is done


Note - different switches have different maximum values. Use the "?" key to see what your device will go to and pick the maximum

Adjust the maximum MTU for Gigabit Ethernet ports as follows:

Lab-QinQ(config)#system mtu jumbo 9000
Changes to the system jumbo MTU will not take effect until the next reload is done


Again, different devices may have different maximum values so use the "?" key to find how far you can set this.

Now, as it says, reboot the switch to make the changes stick.

Once the switch is back up and running, the next job is to create your "provider" VLANs. Note - these VLANs will not be visible to your "customer" topology so it's good to pick a range of consecutive VLAN IDs. I like to start at 100 and work up. Note that each of these VLANs needs to have its MTU increased from the default to allow transport of full size frames with the additional VLAN tag:

Lab-QinQ(config)#vlan 100
Lab-QinQ(config-vlan)# name xconnect100
Lab-QinQ(config-vlan)# mtu 1900
Lab-QinQ(config-vlan)#exit


You will need one VLAN for each virtual connection between devices - I usually throw 20 in and add more later if required.

Finally, for every port where you will attach a device, set the switchport into 802.1Q tunnel mode, and enable all the protocol tunnelling options:

Lab-QinQ(config)#interface range Fa0/1 - Fa0/24
Lab-QinQ(config-if-range)# switchport mode dot1q-tunnel
Lab-QinQ(config-if-range)# l2protocol-tunnel cdp
Lab-QinQ(config-if-range)# l2protocol-tunnel stp
Lab-QinQ(config-if-range)# l2protocol-tunnel vtp
Lab-QinQ(config-if-range)# l2protocol-tunnel point-to-point pagp
Lab-QinQ(config-if-range)# l2protocol-tunnel point-to-point lacp
Lab-QinQ(config-if-range)# l2protocol-tunnel point-to-point udld

Lab-QinQ(config-if-range)# spanning-tree portfast trunk

Setting Up a Basic Topology


OK so we have the switch set up, let's set up a really simple topology:



The basic process here is to look at your diagram and anywhere you see a line, assign it one of your provider VLAN numbers:



Now, for each port on the topology, go and set the relevant switch port as a member of that VLAN:

Lab-QinQ(config)#int Fa0/1
Lab-QinQ(config-if)#description PC1
Lab-QinQ(config-if)#switchport access vlan 101
Lab-QinQ(config-if)#interface Fa0/6
Lab-QinQ(config-if)#description SW1 Gi1/4
Lab-QinQ(config-if)#switchport access vlan 101


Lab-QinQ(config-if)#interface Fa0/3
Lab-QinQ(config-if)#description SW1 Gi1/1
Lab-QinQ(config-if)#switchport access vlan 102
Lab-QinQ(config-if)#interface Fa0/11
Lab-QinQ(config-if)#description R1 Fa0/1
Lab-QinQ(config-if)#switchport access vlan 102


As you can see, VLAN 101 is used to "connect" PC1 to SW1 port Gi1/4, while VLAN 102 is used to "connect" SW1 port Gi1/1 to R1 port Fa0/1. Thanks to the protocol tunnelling config, SW1 and R1 believe they are directly connected:

R1#show cdp neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                  D - Remote, C - CVTA, M - Two-port Mac Relay

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
SW1
Fas 0/1           168             R S I  WS-C6503- Gig 1/1

MAC entries are learned as if the devices were directly attached and the router and PC can ping each other:

R1#ping PC1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.0.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
R1#



This is a fairly simple example but as we're about to get into, way more complex topologies can be achieved using the same methods.

Slightly More Complex Setup


Let's mix things up a bit by building a topology with an HA pair of Juniper SRX firewalls, trunking VLANs down to a pair of switches, connected by an LACP link bundle (portchannel):




As with the other example, we simply assign a provider VLAN to each link:




I won't include the config here for each of these as it's a pure repetition of the earlier work - just make sure that your ports go into the right VLANs and everything should be fine.

Now we can see that the firewalls have come up in HA:

{primary:node0}
root@SRX-top> show chassis cluster status
Monitor Failure codes:
    CS  Cold Sync monitoring        FL  Fabric Connection monitoring
    GR  GRES monitoring             HW  Hardware monitoring
    IF  Interface monitoring        IP  IP monitoring
    LB  Loopback monitoring         MB  Mbuf monitoring
    NH  Nexthop monitoring          NP  NPC monitoring
    SP  SPU monitoring              SM  Schedule monitoring

Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 1
node0  100      primary        no      no       None
node1  50       secondary      no      no       None

Redundancy group: 1 , Failover count: 1
node0  100      primary        no      no       None
node1  50       secondary      no      no       None


The switches have bundled their ports and can see each other's device IDs:

SW-2#show lacp internal
Flags:  S - Device is requesting Slow LACPDUs
        F - Device is requesting Fast LACPDUs
        A - Device is in Active mode       P - Device is in Passive mode

Channel group 1
                            LACP port     Admin     Oper    Port        Port
Port      Flags   State     Priority      Key       Key     Number      State
Gi0/1     SA      bndl      32768         0x1       0x1     0x112       0x3D
Gi0/2     SA      bndl      32768         0x1       0x1     0x113       0x3D


SW-2#show lacp neighbor
Flags:  S - Device is requesting Slow LACPDUs
        F - Device is requesting Fast LACPDUs
        A - Device is in Active mode       P - Device is in Passive mode

Channel group 1 neighbors

Partner's information:

                  LACP port                        Admin  Oper   Port    Port
Port      Flags   Priority  Dev ID          Age    key    Key    Number  State
Gi0/1     SA      32768     3037.a6ca.aa80  10s    0x0    0x1    0x112   0x3D
Gi0/2     SA      32768     3037.a6ca.aa80   9s    0x0    0x1    0x113   0x3D



And, as before, CDP works fine:

SW-2#show cdp neighbor
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                  D - Remote, C - CVTA, M - Two-port Mac Relay

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
SW-1             Gig 0/1           152              S I   WS-C3560G Gig 0/1
SW-1             Gig 0/2           164              S I   WS-C3560G Gig 0/2
SW-2#


Even UDLD is active and "sees" the device on the other end as if it were locally connected:

SW-1#show udld Gi0/1

Interface Gi0/1
---
Port enable administrative configuration setting: Enabled / in aggressive mode
Port enable operational state: Enabled / in aggressive mode
Current bidirectional state: Bidirectional
Current operational state: Advertisement - Single neighbor detected
Message interval: 7
Time out interval: 5

    Entry 1
    ---
    Expiration time: 44
    Device ID: 1
    Current neighbor state: Bidirectional
    Device name: FOCABCD0123
    Port ID: Gi0/1
    Neighbor echo 1 device:
FOCWXYZ9876
    Neighbor echo 1 port: Gi0/1

    Message interval: 15
    Time out interval: 5
    CDP Device name: SW-2
SW-1#


As a side note, a lot of Cisco kit only supports long LACP timers (90 second failure detection, as opposed to 3 seconds for short) so if you are in this boat then consider using UDLD when configuring bundles over indirect links. This should reduce detection time to 45 seconds, which is still a bit rubbish but better than 90. By default, error-disable recovery is not active for UDLD so once UDLD takes a link down, it stays down - so you probably want to switch recovery on:

SW-1(config)#errdisable recovery cause udld

 Simulating Failures


One of the more common uses for a lab environment is to test failovers. One of the more common failure types to want to simulate is a link failure, however this is not quite as straightforward with a QinQ switch in the middle as taking one port down does not make the other go down, e.g.:




If you want to simulate pulling a link, I find the best way is to use an interface range command. Let's say we want to remove the link between FW1 and SW1, simply specify an interface range on the QinQ switch containing the switch ports facing each of those two devices and shut them down at the same time:

Lab-QinQ(config)#interface range fa0/14, fa0/21
Lab-QinQ(config-if-range)#shut
.May 30 12:55:30 UTC: %LINK-5-CHANGED: Interface FastEthernet0/14, changed state to administratively down
.May 30 12:55:30 UTC: %LINK-5-CHANGED: Interface FastEthernet0/21, changed state to administratively down
.May 30 12:55:31 UTC: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/14, changed state to down
.May 30 12:55:31 UTC: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/21, changed state to down


The same technique can be used to simulate the failure of an entire cabinet or site, just select all the ports you need in a range and shut them down.

Another common test that you may want to perform is to simulate a "silent failure", i.e. where both ends see the link up but traffic is lost in the middle. This is good for checking how quickly and how well protocol heartbeats detect link problems (think LACP, UDLD, routing protocols, etc) and is definitely worth checking before you put services over carrier circuits or inter-DC links. To achieve this, simply set the provider VLAN on one of your ports to something unused:

Lab-QinQ(config)#interface fa0/14
Lab-QinQ(config-if-range)#switchport access vlan 2


The two ends of the link will remain up but no traffic will pass through.

References


Cisco Documentation on Jumbo Frames
Cisco Documentation on UDLD

Sunday 7 May 2017

Building Chassis Cluster on Juniper SRX

For a while I've wanted to post about Juniper SRX chassis cluster - I had to do some in-depth troubleshooting on it once and found that the information I needed was scattered across several documents and proved tricky to bring together.

Anyway, a couple of weeks ago I found the time to create a YouTube video showing how to do the basic setup of a chassis cluster, how to tell it is working, how to manually fail over, how to recover a disabled node and finally how to remove the chassis cluster configuration. The video is here:


However, at just over half an hour long it's a bit unwieldy if you only want some of the information! For easy searching, I've decided to write this accompanying blog post.

Chassis Cluster Concepts


Chassis cluster is Juniper's hardware HA mechanism for the SRX series. The chassis cluster mechanism keeps configurations and connection state replicated between devices so that, in the event of a failure, a standby device can take over the functions of the cluster with little downtime.

When a pair of devices are configured for chassis cluster, a raft of new port types come into play:

  • Control (CTRL) - The key to chassis cluster - responsible for replicating configuration and state, liveness checks and other housekeeping tasks. The CTRL port is usually chosen by JunOS and is fixed for a particular hardware type.
  • Fabric (fab0 / fab1) - Used to carry traffic between devices when a port goes down on the active device and traffic enters the standby (or for ports configured only on one member device). The fabric port is also used to avoid split brain in the event of a control link failure - if CTRL goes away but fabric remains, the two devices know not to both go active. Fabric ports are configured manually and there may be up to 2 pairs.
  • Out of Band Management (fxp0 and fxp1) - Used to manage the individual devices. The fxp interfaces do not fail over when there is a mastership change and always belong to the specific member, allowing management access to both devices irrespective of which is master. fxp ports are usually chosen by JunOS and will be fixed for a given hardware platform.
  • Redundant Ethernet (reth) - When a port on each device is configured for the same purpose, it is called a redundant Ethernet or "reth" interface. The active member of a reth moves as mastership changes and when there are connectivity failures. An arbitrary number of reth interfaces may be configured, depending on how many ports are available.

The diagram below shows our topology:


Preparing for Chassis Cluster


When setting up a chassis cluster I strongly recommend completely blowing away the configuration on your devices first. SRX 100 (and potentially other platforms) do not let you have Ethernet switching configuration while in chassis cluster mode, so even the vanilla factory default configuration can upset chassis cluster. Just clear everything, set the root password then commit:

root> configure
Entering configuration mode

[edit]
root# delete
This will delete the entire configuration
Delete everything under this level? [yes,no] (no) yes

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:


root# commit and-quit
commit complete
Exiting configuration mode


root>

Once this is done on both devices, we can begin the chassis cluster configuration.

Enabling Chassis Cluster


The first task with chassis cluster is to choose a cluster ID (from 0 to 255, however 0 means "no chassis cluster"). The cluster ID must match between members. In most cases you can just pick 1 but when there are multiple clusters on the same layer 2 network you will need to use different cluster IDs for each cluster.

At the same time the cluster ID is applied, we must also apply the node ID. Each device must have a unique node ID within the cluster, in fact 0 and 1 are the only valid node IDs so in essence one device must be node 0 and the other node 1.

In order to take effect, the devices must be rebooted and this can be requested by adding the "reboot" keyword:

root> set chassis cluster cluster-id 1 node 0 reboot
Successfully enabled chassis cluster. Going to reboot now.

Note: this is done from the exec CLI context, not the configuration context. Perform the same command on the second device but using node 1 in place of node 0.

Once the devices have rebooted, you will notice that the prompt has changed to indicate the node number and activity status ("primary"or "secondary"). For a brief period following boot, the status on both devices will show as "hold" - during this time the device refrains from becoming active while it checks to see if there is another cluster member already serving.

{primary:node0}
root>


and

{secondary:node1}
root>


Once the devices have entered this state, configuration applied to one device will replicate to the other (in either direction). From here the rest of the chassis cluster configuration can be applied.

Note: If the devices both become active, check that their control link is up.

Redundancy Groups


Redundancy groups are primarily used to bundle resources that need to fail over together. Resources in the same redundancy group are always "live" on the same member firewall as each other, while different redundancy groups can be active on the same or different devices to one another. This allows some resources to be active on one cluster member while others are active on the opposite device.

To begin with there is only one redundancy group, group 0, which decides which firewall is the active routing engine. As a best practice you should always influence which device will become master in the event of a simultaneous reboot. This is done by setting the priority as follows:

{primary:node0}[edit]
root# set chassis cluster redundancy-group 0 node 0 priority 100
{primary:node0}[edit]
root# set chassis cluster redundancy-group 0 node 1 priority 50


Note that group 0 is not and cannot be pre-emptive, i.e. a higher priority only takes effect when there is an election (i.e. at boot time), not if a higher priority device appears while a lower priority device is active.

Later on we will configure redundant Ethernet interfaces, which is where groups 1 and upwards come into play. We will create group 1 ready for the interfaces - note this can be set to pre-empt if you like:

{primary:node0}[edit]
root# set chassis cluster redundancy-group 1 node 0 priority 100
{primary:node0}[edit]
root# set chassis cluster redundancy-group 1 node 1 priority 50


Here I've set the priorities the same between the groups - it's very possible to have group 0 active on one device and group 1 active on the other, however it's messy, lots of traffic has to traverse the fabric link(s) and it increases your exposure - in that state, failure of either firewall would have some impact on connectivity whereas when they are aligned you could lose the standby with no impact to service.

For this reason, I don't configure pre-empt - that way all groups should be active on the same device unless manually tweaked. If you'd rather it be revertive, use this command:

{primary:node0}[edit]
root@SRX-top# set chassis cluster redundancy-group 1 preempt


Applying Configuration to Single Devices


While it's useful to have exactly the same configuration on the firewalls for most things, it is very useful to be able to keep some configuration unique per device. Good examples of this are the device hostname and management IP address.

This is achieved using groups called "node0" and "node1" which are applied per device using a special macro:

{primary:node0}[edit]
root# set groups node0 system host-name SRX-top
{primary:node0}[edit]
root# set groups node0 interfaces fxp0 unit 0 family inet address 172.16.1.1/24
{primary:node0}[edit]
root# set groups node1 system host-name SRX-bottom
{primary:node0}[edit]
root# set groups node1 interfaces fxp0 unit 0 family inet address 172.16.1.2/24

{primary:node0}[edit]
root# set apply-groups ${node}


What we've done here is to define a node0 group which defines the hostname and out of band IP for node 0, then the same for node 1. Finally, the apply group uses the "${node}" macro to apply the node0 group to node 0 and node1 to node 1.

Defining Fabric Interfaces


In order to allow traffic to traverse between the clustered devices, at least one fabric interface per node must be configured (up to two per node is allowed). In our case we will configure this up on port 5 so that it is adjacent to the other special purpose ports. There are two "fab" virtual interfaces on the cluster, fab0 associated to node 0 and fab1 associated with fab1:

{primary:node0}[edit]
root# set interfaces fab0 fabric-options member-interfaces fe-0/0/5
{primary:node0}[edit]
root# set interfaces fab1 fabric-options member-interfaces fe-1/0/5


Note that ports on node 0 are denoted by fe-0/x/x while ports on node 1 are denoted by fe-1/x/x. If you want a dual fabric (either for resilience or to cope with a lot of inter-chassis traffic in the event of a failover) then just add the second interface on each side in exactly the same way.

Redundant Ethernet (reth) Interfaces


In order to be highly available, each traffic interface needs to have a presence on node 0 and node 1 (otherwise interfaces would be lost when a failover occurs). In the SRX chassis cluster world, this pairing of interfaces is done using a redundant Ethernet or "reth" virtual interfaces.

The first step in configuring redundant Ethernet interfaces is to decide how many are allowed (similar to ae interfaces):

{primary:node0}[edit]
root# set chassis cluster reth-count 5


Next we configure the member interfaces that will belong to each reth (note: on higher end SRX this will be gigether-options or ether-options rather than fastether-options):

{primary:node0}[edit]
root# set interfaces fe-0/0/0 fastether-options redundant-parent reth0
{primary:node0}[edit]
root# set interfaces fe-1/0/0 fastether-options redundant-parent reth0


...and assign the reth to a redundancy group (mentioned earlier):

{primary:node0}[edit]
root# set interfaces reth0 redundant-ether-options redundancy-group 1


At this point the reth can be configured like any other routed interface - units, address families, security zones, etc. are all used in exactly the same way as a normal port.

For reference, here's the full configuration as used in the video:

set groups node0 system host-name SRX-top
set groups node0 interfaces fxp0 unit 0 family inet address 172.16.1.1/24
set groups node1 system host-name SRX-bottom
set groups node1 interfaces fxp0 unit 0 family inet address 172.16.1.2/24
set apply-groups "${node}"
set system root-authentication encrypted-password "$1$X8eRYomW$Wbxj8V0ySW/5dQCXrkYD70"
set chassis cluster reth-count 5
set chassis cluster redundancy-group 0 node 0 priority 100
set chassis cluster redundancy-group 0 node 1 priority 50
set chassis cluster redundancy-group 1 node 0 priority 100
set chassis cluster redundancy-group 1 node 1 priority 50
set interfaces fe-0/0/0 fastether-options redundant-parent reth0
set interfaces fe-0/0/1 fastether-options redundant-parent reth1
set interfaces fe-1/0/0 fastether-options redundant-parent reth0
set interfaces fe-1/0/1 fastether-options redundant-parent reth1
set interfaces fab0 fabric-options member-interfaces fe-0/0/5
set interfaces fab1 fabric-options member-interfaces fe-1/0/5
set interfaces reth0 redundant-ether-options redundancy-group 1
set interfaces reth0 unit 0 family inet address 10.10.10.10/24
set interfaces reth1 redundant-ether-options redundancy-group 1
set interfaces reth1 unit 0 family inet address 192.168.0.1/24
set security nat source rule-set trust-to-untrust from zone trust
set security nat source rule-set trust-to-untrust to zone untrust
set security nat source rule-set trust-to-untrust rule nat-all match source-address 0.0.0.0/0
set security nat source rule-set trust-to-untrust rule nat-all then source-nat interface
set security policies from-zone trust to-zone untrust policy allow-all match source-address any
set security policies from-zone trust to-zone untrust policy allow-all match destination-address any
set security policies from-zone trust to-zone untrust policy allow-all match application any
set security policies from-zone trust to-zone untrust policy allow-all then permit
set security zones security-zone untrust interfaces reth0.0
set security zones security-zone trust interfaces reth1.0


Checking and Troubleshooting


Now that the configuration is in place,  we should verify its status. There are a number of commands we can use to check the operation of chassis cluster, probably the most frequently used one would be "show chassis cluster status":

{primary:node0}
root@SRX-top> show chassis cluster status
Monitor Failure codes:
    CS  Cold Sync monitoring        FL  Fabric Connection monitoring
    GR  GRES monitoring             HW  Hardware monitoring
    IF  Interface monitoring        IP  IP monitoring
    LB  Loopback monitoring         MB  Mbuf monitoring
    NH  Nexthop monitoring          NP  NPC monitoring
    SP  SPU monitoring              SM  Schedule monitoring

Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 1
node0  100      primary        no      no       None
node1  50       secondary      no      no       None

Redundancy group: 1 , Failover count: 1
node0  100      primary        no      no       None
node1  50       secondary      no      no       None


From this you can see the configured priority for each node against each redundancy group, along with its operational status (i.e. whether it is acting as the primary or secondary).

Another useful command to verify proper operation is "show chassis cluster statistics":

{primary:node0}
root@SRX-top> show chassis cluster statistics
Control link statistics:
    Control link 0:
        Heartbeat packets sent: 424101
        Heartbeat packets received: 424108
        Heartbeat packet errors: 0
Fabric link statistics:
    Child link 0
        Probes sent: 834746
        Probes received: 834751
    Child link 1
        Probes sent: 0
        Probes received: 0
Services Synchronized:
    Service name                              RTOs sent    RTOs received
    Translation context                       0            0
    Incoming NAT                              0            0
<snip>

In this output we would expect to see the number of control link heartbeats to be steadily increasing over time (more than 1 per second) and the same for the probes. Usefully, if you have dual fabric links then it shows activity for each separately so that you can determine the health of both.

One of the most useful commands available (which sometimes in older versions was not visible in the CLI help and would not auto-complete but would still run if typed completely) is "show chassis cluster information":

{primary:node0}
root@SRX-top> show chassis cluster information
node0:
--------------------------------------------------------------------------
Redundancy Group Information:

    Redundancy Group 0 , Current State: primary, Weight: 255

        Time            From           To             Reason
        Apr 28 15:06:58 hold           secondary      Hold timer expired
        Apr 28 15:07:01 secondary      primary        Better priority (1/1)

    Redundancy Group 1 , Current State: primary, Weight: 255

        Time            From           To             Reason
        May  3 12:59:58 hold           secondary      Hold timer expired
        May  3 12:59:59 secondary      primary        Better priority (100/50)

Chassis cluster LED information:
    Current LED color: Green
    Last LED change reason: No failures
Control port tagging:
    Disabled

node1:
--------------------------------------------------------------------------
Redundancy Group Information:

    Redundancy Group 0 , Current State: secondary, Weight: 255

        Time            From           To             Reason
        Apr 28 15:06:34 hold           secondary      Hold timer expired

    Redundancy Group 1 , Current State: secondary, Weight: 255

        Time            From           To             Reason
        May  3 12:59:54 hold           secondary      Hold timer expired

Chassis cluster LED information:
    Current LED color: Green
    Last LED change reason: No failures
Control port tagging:
    Disabled


The brilliant part about this command is that it shows you a history of exactly when and why the firewalls last changed state. The "Reason" field is really quite explanatory, giving reasons such as "Manual failover".

Manual Failover


Failing over the SRX chassis cluster is not quite as straightforward as with some other vendors' firewalls - for a start there are at least 2 redundancy groups to fail over, but in addition to that the forced activity is 'sticky', i.e. you have to clear out the forced mastership to put the cluster back to normal.

So let's say we have node0 active on both redundancy groups:

{secondary:node1}
root> show chassis cluster status
<snip>
Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 0
node0  100      primary        no      no       None
node1  50       secondary      no      no       None

Redundancy group: 1 , Failover count: 2
node0  100      primary        no      no       None
node1  50       secondary      no      no       None

We can fail over redundancy group 1 as follows:

{secondary:node1}
root> request chassis cluster failover redundancy-group 1 node 1
node1:
--------------------------------------------------------------------------
Initiated manual failover for redundancy group 1

Now when we check, we can see that node1 is the primary as expected but also its priority has changed to 255 and the "Manual" column shows "yes" for both devices. This indicates that node1 is forced primary and, effectively, can't be pre-empted even if that is set up on the group:

{secondary:node1}
root> show chassis cluster status
<snip>
Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 0
node0  100      primary        no      no       None
node1  50       secondary      no      no       None

Redundancy group: 1 , Failover count: 3
node0  100      secondary      no      yes      None
node1  255      primary        no      yes      None

If you have pre-empt enabled on the redundancy-group then you will need to leave it like this for as long as you want node1 to remain active. If not then you can clear the forced mastership out immediately:

root> request chassis cluster failover reset redundancy-group 1
node0:
--------------------------------------------------------------------------
No reset required for redundancy group 1.

node1:
--------------------------------------------------------------------------
Successfully reset manual failover for redundancy group 1

Just remember to do this for both (or all) redundancy groups if you want to take node0 out of service for maintenance.

Fabric Links and Split Brain


In addition to transporting traffic between cluster members when redundancy-groups are active on different members, the fabric link or links carry keepalive messages. This not only ensures that the fabric links are usable but is also used as a method to prevent "split brain" in the event that the single control link goes down.

The logic that the SRX uses is as follows:

If the control link is lost but fabric is still reachable, the secondary node is immediately put into an "ineligible" state:

{secondary:node1}
root> show chassis cluster status
<snip>
Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 0
node0  0        lost           n/a     n/a      n/a
node1  50       ineligible     no      no       None

Redundancy group: 1 , Failover count: 4
node0  0        lost           n/a     n/a      n/a
node1  50       ineligible     no      no       None

If the fabric link is also lost during the next 180s then the primary is considered to be dead and the secondary node becomes primary. If the fabric link does is not lost during the 180s window then the standby device switches from "ineligible" to "disabled". Even if the control link recovers, as shown here (the partner node changes from "lost" to "primary"):

{ineligible:node1}
root> show chassis cluster status
<snip>
Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 0
node0  100      primary        no      no       None
node1  50       ineligible     no      no       None

Redundancy group: 1 , Failover count: 4
node0  100      primary        no      no       None
node1  50       ineligible     no      no       None

Once 180s passes, the device will still go into a "disabled" state:

{ineligible:node1}
root> show chassis cluster status
<snip>
Cluster ID: 1
Node   Priority Status         Preempt Manual   Monitor-failures

Redundancy group: 0 , Failover count: 0
node0  100      primary        no      no       None
node1  50       disabled       no      no       None

Redundancy group: 1 , Failover count: 4
node0  100      primary        no      no       None
node1  50       disabled       no      no       None

The output of "show chassis cluster information" makes it quite clear what happened:

        May  7 16:46:38 secondary      ineligible     Control link failure
        May  7 16:49:38 ineligible     disabled       Ineligible timer expired

From the disabled state, the node can never become active. To recover from becoming "disabled", the affected node must be rebooted (later releases allow auto recovery, but this seems to just reboot the standby device anyway and that idea rubs me up the wrong way).

Removing Chassis Cluster


In order to remove chassis cluster from your devices, just go onto each node and run:

root@SRX-bottom> set chassis cluster disable

For cluster-ids greater than 15 and when deploying more than one
cluster in a single Layer 2 BROADCAST domain, it is mandatory that
fabric and control links are either connected back-to-back or
are connected on separate private VLANS.

Also, while not absolutely required, I strongly recommend:

{secondary:node1}
root@SRX-bottom> request system zeroize
warning: System will be rebooted and may not boot without configuration
Erase all data, including configuration and log files? [yes,no] (no) yes

error: the ipsec-key-management subsystem is not responding to management requests
warning: zeroizing node1

Bye, bye, chassis cluster!

Thursday 27 April 2017

Hacky on-the-spot netflow

Sometimes it would be really useful to see what flows are active over a link, i.e. what is talking to what, but you don't have a netflow collector available (or the time to set one up). I was in this situation recently and discovered that it's possible to get most of the useful information out of netflow using just a Linux box and some scripting. Easy peasy.

1 - Configure Netflow on the Router / Firewall


There's not much to say about this, it varies from platform to platform, vendor to vendor, but you just need to set the device up to send Netflow version 5 to your "collector" box.

A couple of examples are here

Older IOS (12.x):


mls flow ip interface-full
ip flow-export version 5
ip flow-export destination x.x.x.x yyyy
interface Gix/x
  ip flow ingress
  mls netflow sampling

Juniper SRX:


set system ntp server pool.ntp.org
set interfaces fe-0/0/1 unit 0 family inet sampling input
set interfaces fe-0/0/1 unit 0 family inet sampling output
set forwarding-options sampling input rate 1024
set forwarding-options sampling family inet output flow-server x.x.x.x port yyyy
set forwarding-options sampling family inet output flow-server x.x.x.x version 5


2 - Capture the Netflow Packets


Use tcpdump / tshark / wireshark / whatever to capture the packets on the "collector" box. The only thing to be careful of is that you don't allow tcpdump to truncate / slice the packets, e.g.:

tcpdump -i eth0 -s 0 -w capfile.cap udp port yyyy and not icmp

The capture can be done on any box which your sampler can forward traffic to and from which you can retrieve the file back to a *nix box with tshark installed. If you have tshark installed on the capture box then you can also use it to dump the flows out.

3 - Dump the Flow Data with tshark


This can be done on the collector box if tshark is available or can be done elsewhere if not. Basically we ask tshark to dump out verbose packet contents then use standard *nix utilities to mangle the output:

tshark -r capfile.cap -nnV | grep -e '       \(...Addr:\|...Port:\|Protocol:\)' | tr '\n' ' ' | sed 's/       SrcAddr:/\n/g;' | awk '{print $1 "\t" $4 "\t" $7 "\t" $9 "\t" $10 $11}' | sed 's/Protocol:6/TCP/g; s/Protocol:17/UDP/g; s/Protocol:1/ICMP/g;'

This prints out the flows as reported by your router / firewall in tab separated columns as follows: Source IP, Destination IP, Source port, Destination port, IP Protocol

For example:

192.168.10.10  10.10.100.99    24010   53      UDP
192.168.8.14   10.10.100.4     0       771     ICMP
172.16.44.9    10.10.100.86    54832   443     TCP



Of course this can be tailored to match whatever fields interest you (for example you may want to include ingress and egress interfaces to show traffic direction or byte counts to get an idea of flow size) but this will cover the basics.

Saturday 11 March 2017

Setup and Troubleshooting of IPSec VPN between AWS and Juniper SRX Firewall

Setting up IPSec VPNs in AWS is pretty simple - virtually all the work is done for you and they even provide you with a config template to blow onto your device. There are only a couple of points to remember while doing this to make sure you get a good, working VPN at the end - in this post I'll quickly show the setup and how to troubleshoot some of the more likely snags that you could run into.

Setup - AWS End


To set up an IPSec VPN into an AWS VPC you require 3 main components - the Virtual Private Gateway (VPG), the Customer Gateway (CG) and the actual VPN connection.


The VPG is is just a named device, like an IGW. Create a VPG and name it.


Attach the VPG to your VPC so that it can be used.

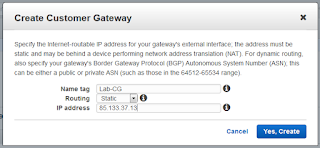

Next we need to create a Customer Gateway (CG) profile:


This defines the parameters of the opposite end of the tunnel (i.e. our SRX firewall), most key being the IP address. For our simple case we'll just use static routing but BGP is also an option.


Next we create a VPN connection profile:


The VPN connection profile basically ties the other two objects together and defines the IP prefix(es) that will be tunnelled over IPSec to the other end.

Once this is created you can download configuration templates for various device types, in our case we want Juniper ERX:


At this point the AWS VPN configuration is basically complete. Download the configuration template and open it in something which handles UNIX style end of line markers (i.e. Notepad++, Wordpad) ready to configure the firewall end.

Setup - Juniper SRX End


Assuming some sort of working basebuild, the Juniper SRX configuration is almost a straight copy and paste from the configuration templates. There are a couple of key exceptions:

  • IKE interface binding (lines 54 & 173 at time of writing) - you should override this with the "outside" interface of your firewall. For xDSL this will probably be pp0.0, for Ethernet based devices it could be fe-x/x/x.0 or vlan.x
  • Routing (lines 134 & 253 at time of writing) - the config template does not contain the actual routes you will need, or even a sensible default such as 172.31.0.0/16 to cover the default VPC.
  • It's probably worth un-commenting the traceoptions lines to give some debugging output in the event of tunnel problems.
Once the template is applied you may have the desired connectivity, if not then read on...

Troubleshooting


Firstly, we need to check phase 1 of the VPN (IKE) is up:

root@Lab-SRX> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
4862528 UP     53a352fbe8fbf11a  26d9edf2e3a2d371  Main           52.56.146.67
4862529 UP     901117dbc101ce98  a1c21584e8cd22e2  Main           52.56.194.28


This shouldn't be a problem as the template basically takes care of all the proposals and whatnot being correct. If there aren't 2 SAs in an UP state then check you put the right IP address into the AWS Customer Gateway configuration.


Next, we check IPSec is up:

root@Lab-SRX> show security ipsec security-associations
  Total active tunnels: 2
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:aes-cbc-128/sha1 49d38075 3543/ unlim U root 500 52.56.146.67
  >131073 ESP:aes-cbc-128/sha1 b3b5474b 3543/ unlim U root 500 52.56.146.67
  <131074 ESP:aes-cbc-128/sha1 4df0b3b 3543/ unlim U root 500 52.56.194.28
  >131074 ESP:aes-cbc-128/sha1 2e1e40aa 3543/ unlim U root 500 52.56.194.28


This should show two tunnels in each direction (direction denoted by the "<" and ">"). Again, very little is likely to go wrong here as the template should cover everything.

Assuming that's good, we would now check IPSec statistics:

root@Lab-SRX> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:             5472
  Decrypted bytes:             3024
  Encrypted packets:             36
  Decrypted packets:             36
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

root@Lab-SRX>



Ideally we want to see both encrypted and decrypted packets - if one way isn't working then probably the (would be) sender is at fault. Verify that the configuration template was fully applied.

Next we check the secure tunnel interface statistics - a good idea is to ping other end of the tunnel to see if the counters increase:

root@Lab-SRX> show interfaces st0 | match packets
    Input packets : 32
    Output packets: 0
    Input packets : 32
    Output packets: 0

root@Lab-SRX> ping 169.254.66.229
PING 169.254.66.229 (169.254.66.229): 56 data bytes
64 bytes from 169.254.66.229: icmp_seq=0 ttl=254 time=12.627 ms
64 bytes from 169.254.66.229: icmp_seq=1 ttl=254 time=12.342 ms
64 bytes from 169.254.66.229: icmp_seq=2 ttl=254 time=12.169 ms
64 bytes from 169.254.66.229: icmp_seq=3 ttl=254 time=12.314 ms
^C
--- 169.254.66.229 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max/stddev = 12.169/12.363/12.627/0.166 ms

root@Lab-SRX> show interfaces st0 | match packets
    Input packets : 36
    Output packets: 4
    Input packets : 32
    Output packets: 0

root@Lab-SRX>

A working ping to the other end with counters incrementing really indicates that the tunnel is formed OK and able to carry traffic. If this works but "real" traffic doesn't then there is most likely some basic configuration missing:


Check Intra-zone Traffic Permitted

By default you can't pass traffic between interfaces of the same zone on the SRX. It's common not to have more than one routed interface in a zone so this is easily overlooked. Just add it as follows:

root@Lab-SRX# set security policies from-zone trust to-zone trust policy allow-all match source-address any
root@Lab-SRX# set security policies from-zone trust to-zone trust policy allow-all match destination-address any
root@Lab-SRX# set security policies from-zone trust to-zone trust policy allow-all match application any
root@Lab-SRX# set security policies from-zone trust to-zone trust policy allow-all then permit
root@Lab-SRX# commit

You should now see your "real" traffic causing the VPN statistics to increment, even if the hosts at each end cannot communicate with one another.

Check AWS Routing Table

One thing that is easily forgotten when creating a new VGW is that in order to use it, a route entry must exist for the subnet sending traffic via the VGW. This needs to be created manually:


Simply edit the routing table(s) applied to your network(s) and set the next hop for your tunnelled networks to be the VPG appliance. At this point you may find that traffic from AWS towards the SRX works but in the opposite direction it does not...

Check AWS Security Group


If at this stage you have one-way connectivity then almost certainly all you need to do is to allow the VPN range inbound on your security group(s). Remember that VPC security groups are stateful and all outbound traffic (and its replies) is allowed by default.

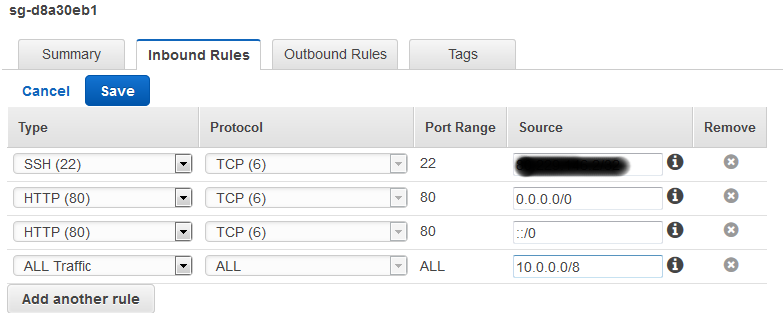

If required, simply add rules allowing the appropriate traffic from the IP block that is tunnelled back to the SRX. In this case to keep it simple we just allow open access:


If it still doesn't work, rollback the SRX config, blow away all the elements of the VPN and start again!
